30L agriculture sprayer for farmer
30L agriculture drone uav agriculture drone sprayer for farmer

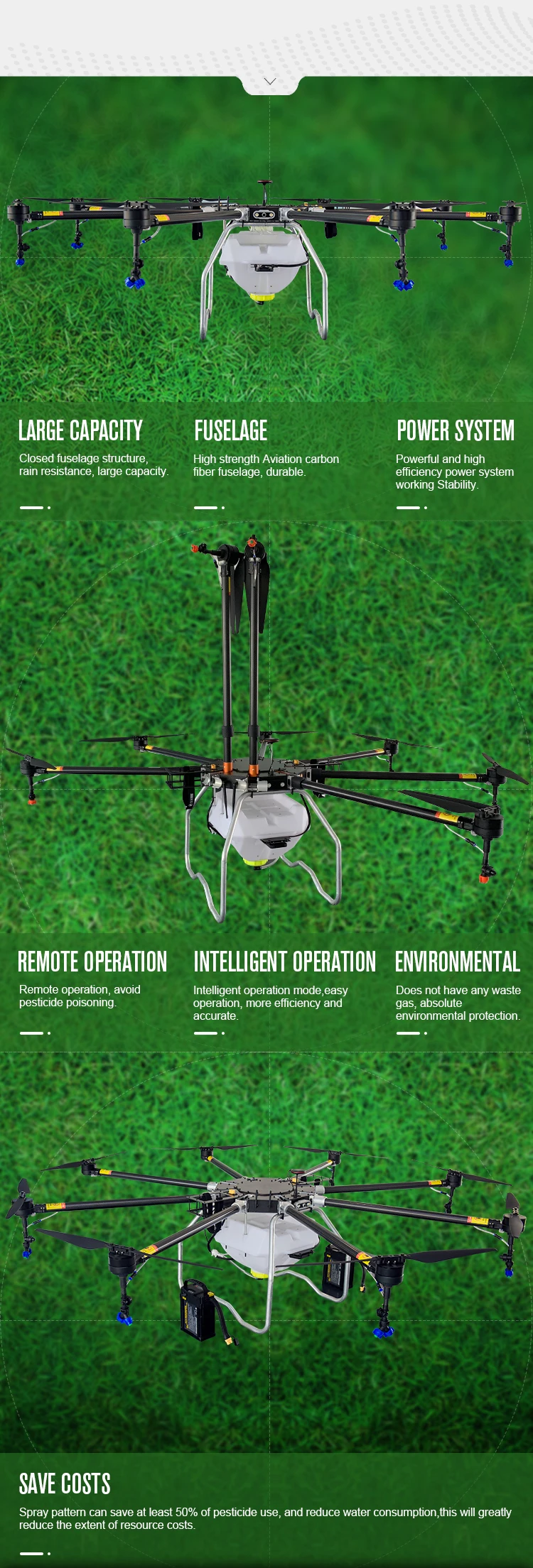

The model of the 30L drone is an efficient 8-rotor drone plant protection. It can effectively reduce the cost of work and significantly improve work efficiency. Compared with the traditional manual spraying operation, the use of such a drone can reduce the labor intensity of workers and prevent workers from inhaling pesticide particles.
Model | JTI M60Q |
product material | Aviation carbon fiber + aviation aluminum |
Product expansion size | 3090mm*3090mm*680mm |
Product folding size | 730mm*830mm*1560mm |
Maximum takeoff weight | 75KG |
Maximum pesticide load | 45KG |
Aircraft weight | 20-21KG |
Aircraft medicine box capacity | 30L |
Flight altitude | ≤30 meters |
Flight radius | ≤5000 meters |
flight duration | 13~40 minutes |
Flight speed | 1-20 m / sec |
Aircraft dynamic life | ≥100,000 hours |
Aircraft rack life | ≥10 years |
Job width | 6-12 meters |
Job life | 13~18 points when fully loaded |
Hovering in the air | Hovering in any direction |
Spray flow | 8-10L/min |
Spray system | Imported high pressure anti-floating atomizing nozzle |
Atomization point size | 60~90μm |
Control System | Agricultural special controller |
Control efficiency | ≥66.6acres / day |
Safe takeoff and landing wind speed | ≤7 |
Charging system | Lithium balance computer charger |
Motor speed | 5000 rpm |
